RAIS T450MT
Технические характеристики T450MT
| Max. swing dia.: | 530 mm |
| Max. Machining Diameter: | 500 mm |
| Max. Machining Length: | 500 mm |
| Max. Bar Diameter: | 65 mm |

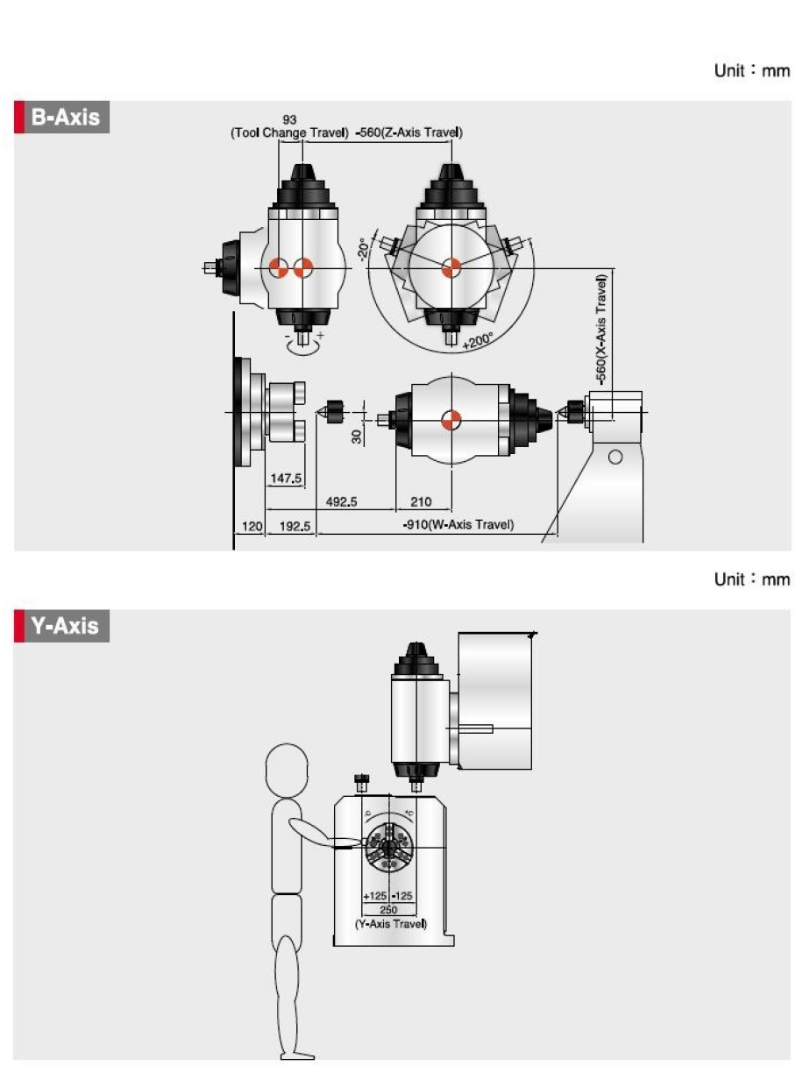

| X-axis Travel: | 560 mm |
| Y-axis Travel: | ±125 mm |
| Z-axis Travel: | 560+93 mm |
| W-axis Travel: | 910 mm |
| B-axis Rotating Angle: | -20°~200° |
| C-axis Rotating Angle: | 360° |
| X-axis Rapid Feedrate: | 36 mm |
| Y-axis Rapid Feedrate: | 36 mm |
| Z-axis Rapid Feedrate: | 36 mm |
| W-axis Rapid Feedrate: | 8 mm |
| B-axis Max. RPM: | 25 RPM |
| C-axis Max. RPM: | 250 RPM |
| Chuck Dimensions S1: | 8″ |
| Chuck Nose Type S1: | A2-6 |
| Hole Diameter S1: | 75 mm |
| Spindle Max. RPM S1: | 4500 RPM |
| Motor Output Power S1: | 15/22 KW |
| Spindle Max. RPM: | 12000 RPM |
| Motor Output Power: | 11/22 KW |
| B-axis Min indexing Angle: | 0.001° |
| Tool indexing Angle/Position: | 90°/4 positions |
| Tool type: | HSK-63T |
| Tool Magazine Capacity: | 36 T |
| Max. Tool Diameter (without adjacent tool): | 90 (120) mm |
| Max. Tool Length: | 250 mm |
| Max. Tool Weight: | 8 kg |
| Quill Type: | MT5 |
| Высота станка: | 2715 mm |
| Занимаемая площадь (без стружкоуборочного конвейера): | 3106×2838 mm |
| Вес станка: | 9200 kg |
| Мощность: | 35 KVA |
| Требование к сжатому воздуху: | 6 kg/cm3 |
